Building Smart LLM Agents with Elasticsearch and Microsoft Copilot Studio

elasticsearch_microsoft_copilot_fastapi

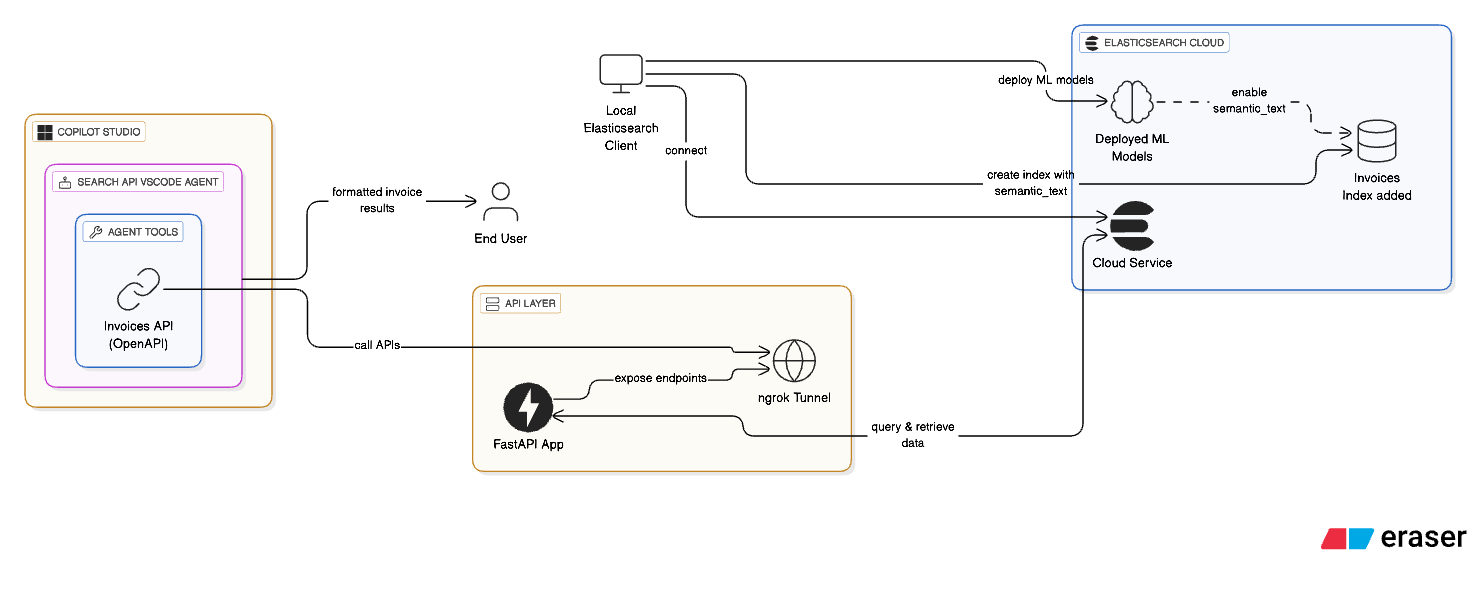

Architecture Diagram

high_level_architecture_diagram

If you’ve ever thought about combining the power of Elasticsearch with the conversational capabilities of Microsoft Copilot, you’re in the right place. I recently explored this integration end-to-end using invoices as a sample dataset to make it easy for FinOps stakeholders. But don’t let that limit your imagination, this approach makes even more sense for DevOps teams or any domain where querying services and infrastructure through natural language could boost productivity. Here’s how I pulled it off.

Prerequisites:

Elasticsearch deployment (local or Elastic Cloud)
- Get Elastic Cloud Endpoint
- Generate an API Key in Kibana for authentication
Sign up for an ngrok account to generate an auth token and enable public tunneling to your local API.
Make sure to install required Python dependencies for running the notebook, or simply upload the notebook in Google Colab for a quick start.
Sign up for a Microsoft Copilot Studio account to create and manage your smart agents.

# Keep these values handy:
Ngrok Auth Token: 2sxxxxxxxxtuJwnADnlp_7xVN8PZuJC9X8ALTFXv2B
Elasticsearch Endpoint: https://elasticsearch-example-cloud-deployment.es.eastus2.azure.elastic-cloud.com
Elasticsearch API Key: RElkcXxxxxxxxxxA6WWtjUGs5OTFTT1Mtc2lxbzU0cC1rUQ==

Step 1: Connect to Elasticsearch (Locally and on Cloud)

I started by spinning up an Elasticsearch client instance locally and connected it to my Elastic Cloud deployment. Nothing fancy here yet, just the usual Elasticsearch Python client (you can follow the official getting started guide here) and some environment variables for auth.

Also, to make sure the ML pipelines work, make sure you have ML nodes available in your Elasticsearch setup, whether locally or in Elastic Cloud. If you’re running Elasticsearch locally, note that you’ll need an enterprise subscription to enable machine learning and inference features. But to be honest, my recommendation is to quickly make use of an Elastic Cloud trial if you’re just testing it out, it’s easier and comes ready with ML capabilities. Whether locally or in Elastic Cloud. This is necessary to deploy the ELSER model for semantic embeddings and to support the semantic_text field during ingestion. Deploying this model will create an inference endpoint, enabling semantic ingestion capabilities. You can learn more about ELSER v2 in the official Elastic documentation.

Quick Testing:

curl --location --request PUT '<elasticsearch_endpoint>/<your_index_name>' \
--header 'Authorization: ApiKey <ADD_YOUR_API_KEY>' \
--header 'Content-Type: application/json' \
--data '{
    "mappings": {
      "properties": {
        "title": { "type": "text" },
        "amount": { "type": "float" },
        "created_at": { "type": "date" }
      }
    }
  }'

Feel free to check this documentation to get an idea for connecting the client: https://www.elastic.co/docs/reference/elasticsearch/clients/python/connecting.

_client = Elasticsearch(
    os.environ["ELASTICSEARCH_ENDPOINT"],
    api_key=os.environ["ELASTICSEARCH_API_KEY"],
)

_client.info()

Step 2: Add Machine Learning Models

To get semantic search working, I deployed an ML model in Elasticsearch. This lets us enable a special semantic_text field in the mapping later on. The model helps Copilot understand queries like “food expenses” even if the actual invoices say “lunch with client” instead.

You can Download and Deploy it:

machine_learning_models_deployed

Step 3: Create the `invoices` Index with Mappings

Once the ML model was ready, I created an index called invoices and added appropriate mappings, including the semantic-enabled field. Here’s where I define fields like description, total_amount, issue_date, and the semantic_text field powered by our ML model. If you face any timeouts or ML-related errors at this point, try again after a few minutes, it’s likely the model is still in the deploying state. It typically takes under 5 minutes for it to become fully available.

Example Document:

{
    "id": "INV-0004",
    "file_url": "https://fake-invoices.example.com/fake/INV-0004.pdf",
    "issue_date": "2025-04-07",
    "description": "CRM system implementation",
    "services": [
      { "name": "CRM setup", "price": 2500.0 },
      { "name": "User training", "price": 700.0 }
    ],
    "total_amount": 3200.0
}

{
    "mappings": {
        "properties": {
            "id": {"type": "keyword"},
            "file_url": {"type": "keyword"},
            "issue_date": {"type": "date"},
            "description": {"type": "text", "copy_to": "semantic_field"},
            "services": {
                "type": "object",
                "properties": {
                    "name": {
                        "type": "text",
                        "copy_to": "semantic_field",
                    },
                    "price": {"type": "float"},
                },
            },
            "total_amount": {
                "type": "float",
            },
            "semantic_field": {"type": "semantic_text"},
        }
    }
}

Create index with the above mappings (handling exception):

try:
    _client.indices.create(
        index=INDEX_NAME,
        body={
            "mappings": {
                "properties": {
                    "id": {"type": "keyword"},
                    "file_url": {"type": "keyword"},
                    "issue_date": {"type": "date"},
                    "description": {"type": "text", "copy_to": "semantic_field"},
                    "services": {
                        "type": "object",
                        "properties": {
                            "name": {
                                "type": "text",
                                "copy_to": "semantic_field",
                            },
                            "price": {"type": "float"},
                        },
                    },
                    "total_amount": {
                        "type": "float",
                    },
                    "semantic_field": {"type": "semantic_text"},
                }
            }
        },
    )

    print("index created successfully")
except Exception as e:
    print(
        f"Error creating inference endpoint: {e.info['error']['root_cause'][0]['reason'] }"
    )

Bulk ingest the invoice payload:

with open("invoices_data.json", "r", encoding="utf-8") as f:
    invoices = json.load(f)

def build_data():
    for doc in invoices:
        yield {"_index": INDEX_NAME, "_source": doc}


try:
    success, errors = bulk(_client, build_data())
    print(f"{success} documents indexed successfully")

    if errors:
        print("Errors during indexing:", errors)

except Exception as e:
    print(f"Error: {str(e)}, please wait some seconds and try again.")

Note, once the ingestion is completed, you can cross-verify the INDEX_NAME(e.g.: invoices) in the Index Management for ingestion of documents in Kibana.

Step 4: Build the API Using FastAPI and ngrok

Now comes the fun part: building a REST API that will expose our search functionality.

FastAPI to serve our semantic and date-range search endpoints
ngrok to expose the local server publicly so Microsoft Copilot can reach it

The two endpoints we created:

/search/semantic for free-text queries
/search/by-date for filtering based on date ranges

These endpoints are designed to be read-only so that our NLP queries from Copilot Agents don’t accidentally modify existing indices. Of course, if you’re experimenting or building something more interactive, feel free to extend it further based on your needs!

@app.get("/search/semantic")
async def search_semantic(query: str = Query(None)):
    try:
        result = _client.search(
            index=INDEX_NAME,
            query={
                "semantic": {
                    "field": "semantic_field",
                    "query": query,
                }
            },
        )

        hits = result["hits"]["hits"]
        results = [{"score": hit["_score"], **hit["_source"]} for hit in hits]

        return results
    except Exception as e:
        return Exception(f"Error: {str(e)}")


@app.get("/search/by-date")
async def search_by_date(from_date: str = Query(None), to_date: str = Query(None)):
    try:
        from_dt = datetime.strptime(from_date, "%m/%d/%Y %I:%M:%S %p")
        to_dt = datetime.strptime(to_date, "%m/%d/%Y %I:%M:%S %p")

        formatted_from = from_dt.strftime("%d/%m/%Y")
        formatted_to = to_dt.strftime("%d/%m/%Y")

        result = _client.search(
            index=INDEX_NAME,
            query={
                "range": {
                    "issue_date": {
                        "gte": formatted_from,
                        "lte": formatted_to,
                        "format": "dd/MM/yyyy",
                    }
                }
            },
        )

        hits = result["hits"]["hits"]
        results = [hit["_source"] for hit in hits]

        return results
    except Exception as e:
        return Exception(f"Error: {str(e)}")

Step 5: Create the Agent in Microsoft Copilot Studio

This is where it all comes together. In Microsoft Copilot Studio - https://copilotstudio.microsoft.com:

I created a new Agent called Elasticsearch VSCode Agent
Description: “Invoice Agent to retrieve data from Elasticsearch”
Prompt: “You are an useful agent for consulting information related to company expenses in the form of invoices. You would need to provide the output response in a formatted information and in a readable way.”

agent_creation_mscopilot

Step 6: Add Tools (Our API) to the Agent (formerly called Actions)

In the Agent, I went to Tools and added a new REST API by uploading our ready OpenAPI specifications for semantic search and search by date. This file includes both our endpoints, and I updated the host field to match my ngrok tunnel (minus the https://).

Don’t forget to handle the ngrok-skip-browser-warning header if you’re using the free tier of ngrok. It trips up Copilot unless you bypass it. By default, Copilot assumes it can dynamically query this value, but you’ll want to change it to a custom value and set it to 1. Do this for both the REST API connectors before attaching them to the Agent.

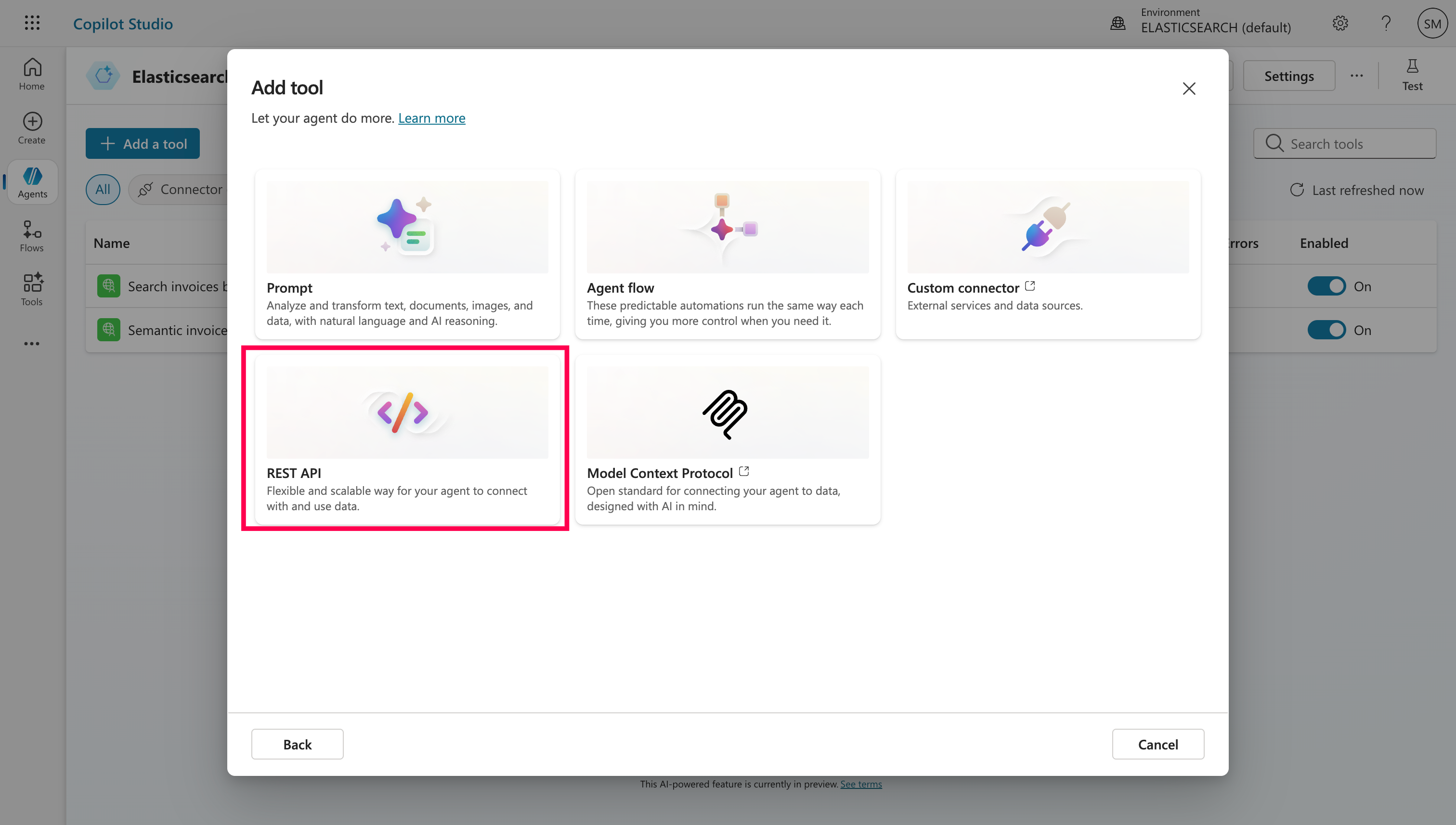

add_a_new_tool

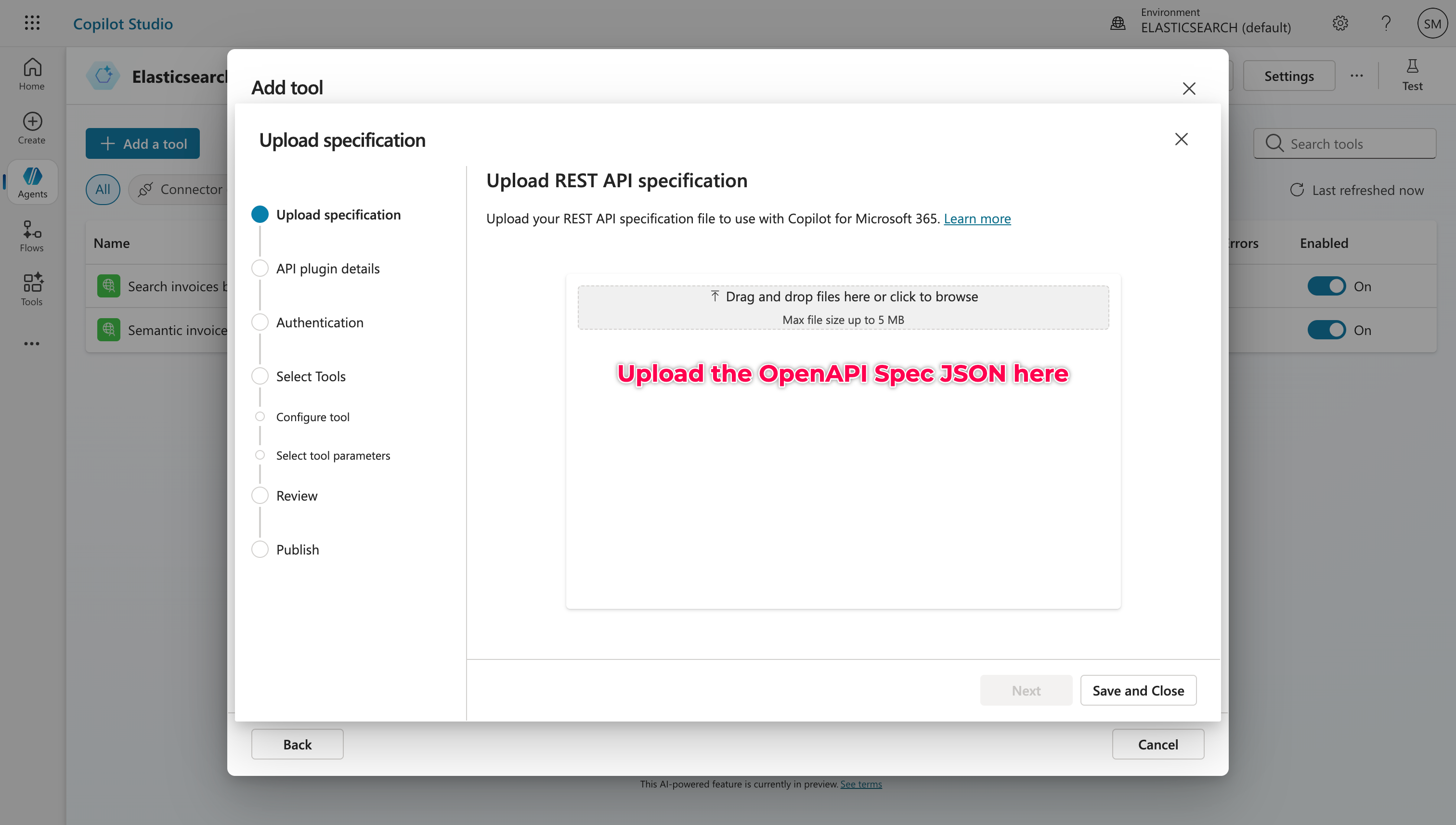

openapi_specification_upload_in_tools

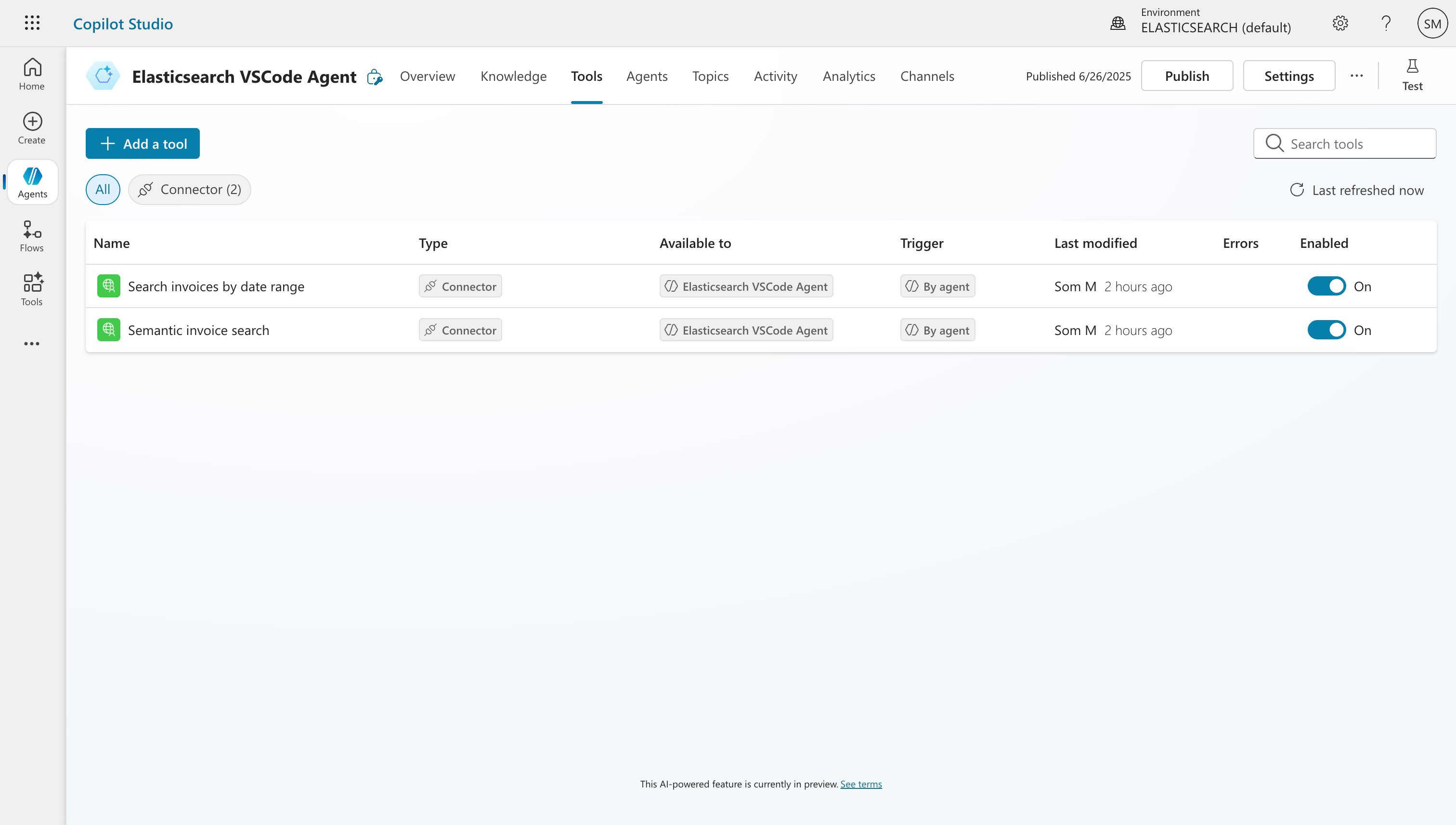

add_tools_to_the_agents

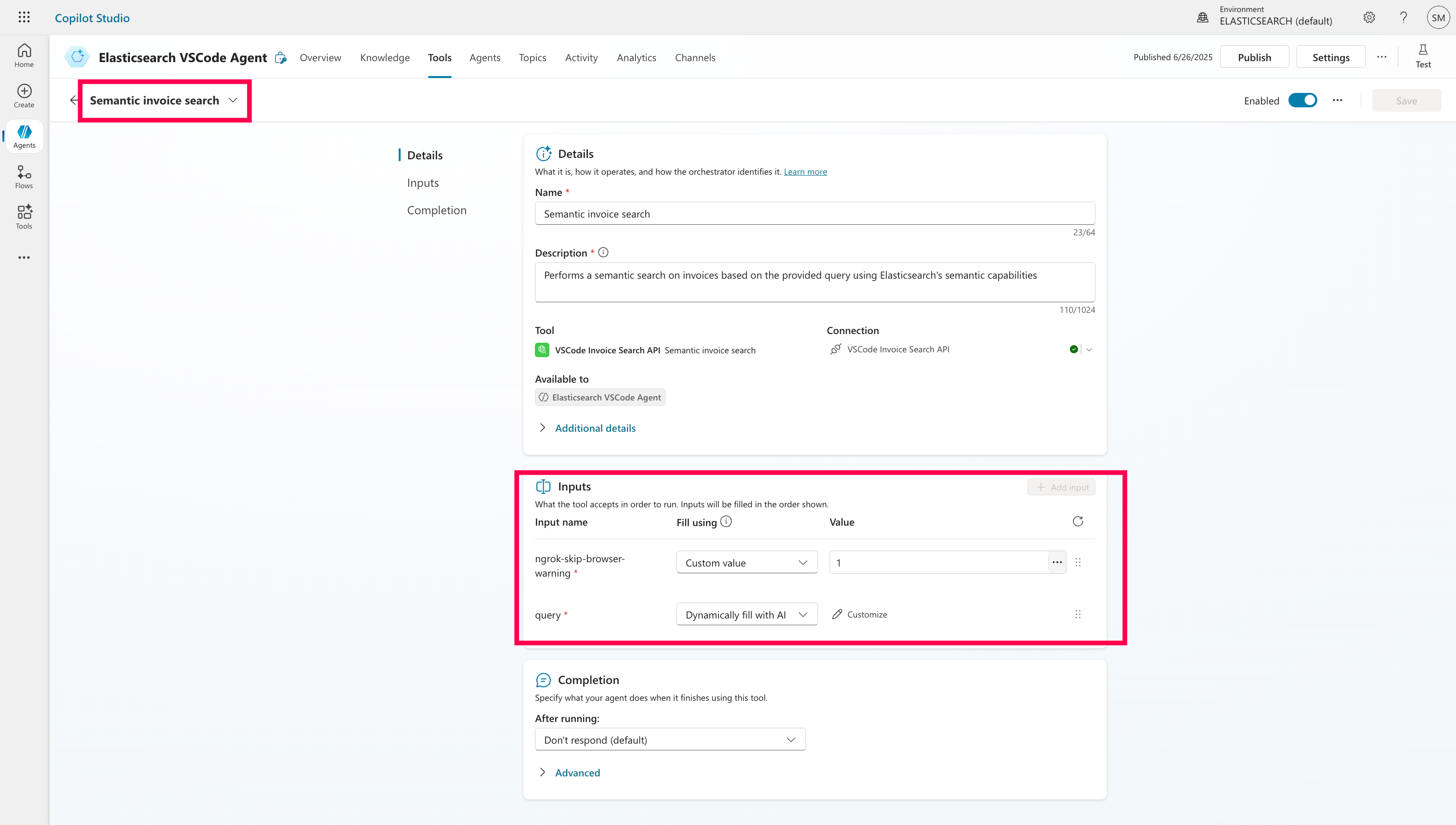

updating_ngrok_skip_browser_warning

Step 7: Connect Everything & Test and Then, Publish

After adding the API to the Agent, I linked the tools and tested a few natural language queries like:

“What are the invoices available for the last 2 days?”
“Show me food-related expenses.”
“Do I have any food expenses related invoices?”
“Do I have electronics related invoices?”

Copilot responded with well-formatted results pulled live from Elasticsearch. It even handled semantic variations correctly thanks to the ML-powered semantic_text field.

You can extend this to Channels and include it to Teams and Copilot Chat.

Final Thoughts

This entire process feels like giving Elasticsearch a voice. You build the brains with Elastic Elser v2 built-in Sparse Vector Model and fast APIs, and Copilot brings the conversation. If you’re working with company data and want to surface it more intuitively inside Teams or the Microsoft 365 ecosystem, this is a powerful pattern to try.

I’m attaching the GitHub repo along with the Jupyter notebook (.ipynb), the OpenAPI specifications, and a sample invoices.json payload for reference. This includes everything you need to ingest documents into Elasticsearch and try it out end-to-end.

Give it a try and let me know your feedback! In the next article, we’ll dive into MCP (Model Context Protocol), since what we’ve done here acts as a precursor to setting up a proper MCP Server.

Credits: Inspired by Elastic’s guide on enhancing Microsoft Copilot with Elasticsearch.
